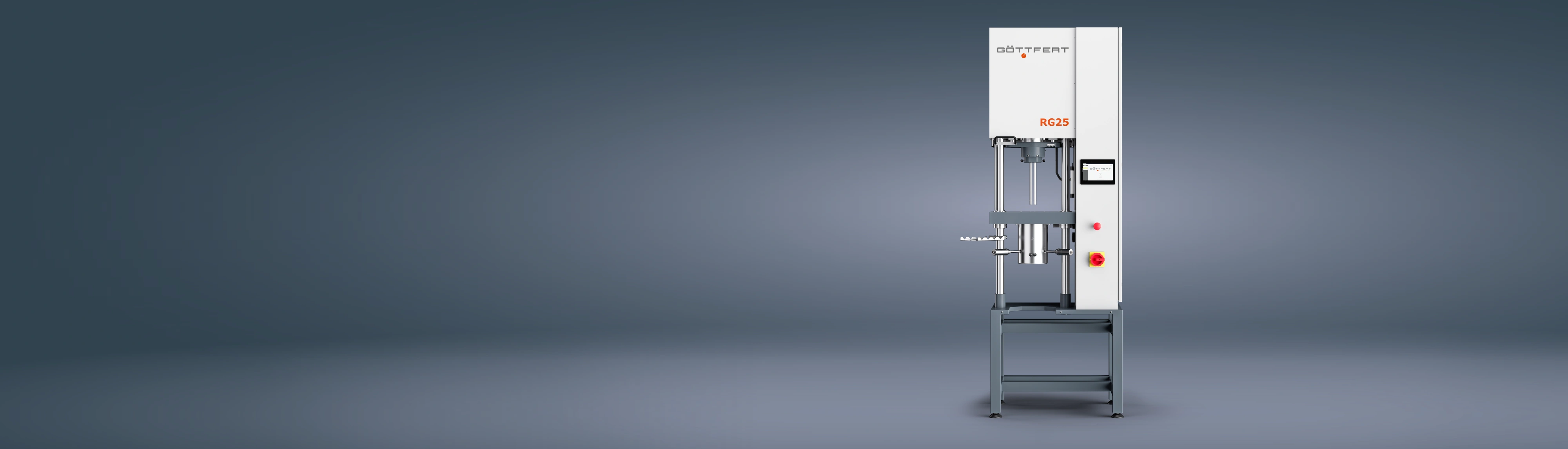

RHEOGRAPH 25 / 50 / 75 / 120

The RHEOGRAPHES 25, 50, 75 and 120 are newly developed, user-friendly high-pressure capillary rheometers with a further extended shear rate range, higher test load (25, 50, 75 and 120 kN) and a wide range of add-ons and options.

  • ASTM D3835 (Viscosity)
  • ISO 17744 (PVT)
  • ASTM D5930 (TCM)
  • ASTM D5099 (Rubber)
  • ISO 11443 (Viscosity)

The newly developed series of GÖTTFERT high pressure capillary rheometers is available with different test loads of 25, 50, 75 or 120 kN. The stronger versions such as RG75 or RG120 can achieve extremely high shear rates even with very high viscosity test material. Due to a unique and large variety of modular add-ons not otherwise available on the market, other material properties can be tested in addition to viscosity. It is possible to characterize all process-relevant material behaviors.

All high-pressure capillary rheometers of this series are available as single-, twin- or triple-barrel versions with different test barrel diameters. We also offer a large number of capillaries and other options that make it possible to adapt the machine perfectly to your application.

An essential improvement of this series compared to the previous generation is the much more accurate pressure measurement. This makes it possible to significantly increase the reproducibility and precision of the test results. Especially the extremely low pressures at very low shear rates can be measured perfectly now.

Due to these improvements in the low and high shear rate range, GÖTTFERT is able to distinguish itself considerably from the market standard.

Technical specifications
  • Maximum test force of 25, 50, 75 or 120 kN
  • Single-, twin- or triple-barrel system
  • Barrel diameter 9.55, 12, 15, 20, 25 or 30 mm, others on request
  • Dynamic speed range 0.00004 - 40 mm/s (1:1000000)
  • High dynamic acceleration of the test pistion (from 0 to 40 in 0.6 seconds)
  • Piston position measurement with high-resolution encoder
  • Adaptive signal resolution of only 0.005 % from the pressure transducer range
  • Integrated tempering jacket
  • Temperature up to 400°C (500°C optional)
  • Alternative steel grades for barrel and piston with higher corrosion or abrasion resistance
  • Optional: Isothermal or isobaric PVT-measurements
  • Optional: Innovative air-cooling system, cooling rate max. 30 K/min

Add-Ons for advanced material characterization

The basic instrument of GÖTTFERT capillary rheometers is designed to carry out viscosity measurements with plastics, rubbers and a variety of other materials. By using modular Add-Ons additional characterization possibilities can be used.

Measuring first normal stress difference at high shear rates via capillary rheometer.

  • Determination of Normal Stress at high shear rates and closer to the processing shear rates which was not possible with conventional technique​
  • Detection of flow instabilities at processing shear rates​
  • Measurement of Viscosity, elongation viscosity and Normal Stress differences​



Besides the PVT 500, GÖTTFERT also offers the PVT-measurement as an add-on for the capillary rheometer. The measurement characterizes the material specific dependencies between pressure, specific volume and temperature.

  • Isothermal or isobaric measurements according to ISO 17744
  • Constant high cooling rate with newly developed air cooling or thermostat
  • Fully automated measurement
  • Automatically generated PVT diagram
  • Parameterization with Tait model as interface to simulation software



Principle of pVT measurement (isothermal)
Principle of pVT measurement (isobaric)

Our newly developed HAUL-OFF with a maximum speed of 2000 m/min is particularly suited for the characterization of fibre-grade materials. The system can be operated with constant acceleration or at constant speed steps. The pull-down force is measured via a smooth-running, anti-stick coated measuring wheel on a highly sensitive force transducer.

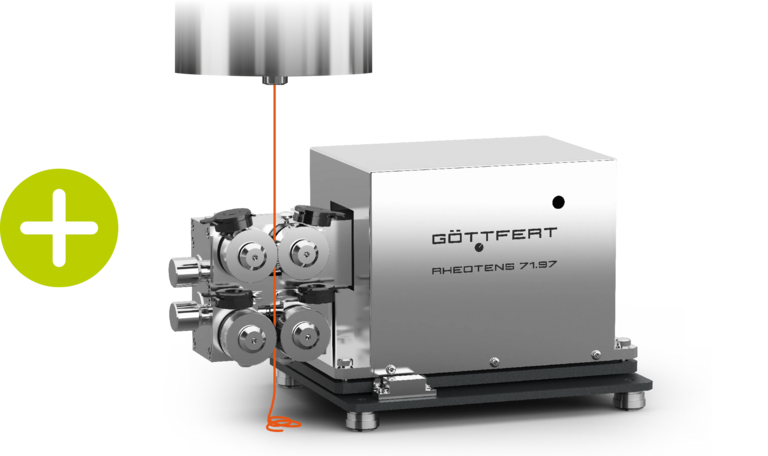

The drawability of polymer melts is of utmost importance in many processes of plastics production and processing. The patented RHEOTENS method has proven to be an extremely sensitive measuring principle that delivers highly reproducible results to show even minimal batch fluctuations. In addition to the already existing constant speed and constant acceleration, exponential acceleration is now also possible. The determination of the extensional viscosity function according to Prof. Wagner is an integral part of the RHEOTHENS. The RHEOTENS is well suited as a processability test for materials used in extrusion or film applications.



The CONTIFEED is a mini-extruder which directly feeds the test barrel of a capillary rheometer. This add-on is particularly suitable for thermally unstable material, due to the reduced dwell time. The plasticizing with pre-shearing in the extruder, makes the measuring process very similar to the production process.

The advantages of the CONTIFEED:

  • Automated, bubble-free filling of the test barrel
  • Influence of plasticizing via extruder can be investigated
  • Shorter material dwell time under temperature influence
  • Rheological characterization at conditions similar to the production process
  • Pre-plastification also allows the measurement of powder materials (e.g. PVC dry blends)



The Shark Skin measuring head is mounted at the bottom of the test barrel instead of the capillary. With this option it is possible to measure exactly at which critical shear rates surface inhomogeneities occur.

  • Detection of the Shark Skin effect
  • Consisting of slit die, three high frequency pressure-sensors (sampling rate up to 20 kHZ), as well as software package
  • Determination of the frequency spectrum and statistical evaluation of the pressure signal
  • Optimization in the extrusion, film and coating process



The sensor for thermal conductivity is mounted just like a standard piston. The barrel is closed at the bottom during the test. The thermal conductivity measurement of solids or melt is performed under stationary conditions.

  • Determination of the thermal conductivity at a measuring range up to 450°C and 1000 bar
  • Developed according to ASTM D5930
  • Test sensor with integrated heating element and temperature sensor
  • Process-Simulation and optimization of cycle times in injection molding
  • No mechanical modifications necessary
  • Fully automatic measurement



The viscosity of polymers can also depend on the general pressure level. The Counter Pressure Chamber is mounted behind the die and generates a back-pressure at the die outlet, which is measured with an additional pressure sensor.

  • Determining the pressure dependence of viscosity (pressure coefficient)
  • Determination of the critical wall shear stress for wall slip
  • Maximum pressure (Pm) 1200 bar
  • Temperature range up to 400°C
  • Optimization of the flow processes in processing machines (injection molding and extrusion tools with long flow paths, melt pumps)



The measuring head is mounted below the die. The measurement can be carried out parallel to a viscosity measurement.

  • Determination of the dynamic and static die swell
  • Evaluation of a die swell profile (BASELL method)
  • Swivel arm with continuous height adjustment
  • Laser measuring head in 0.1 μm or 7 μm version
  • Optional with automatic melt cutting device
  • Optional: acquisition of two strings simultaneously
  • Application: Simulation of material swelling behaviour during extrusion
