MDR ELASTOGRAPH-S

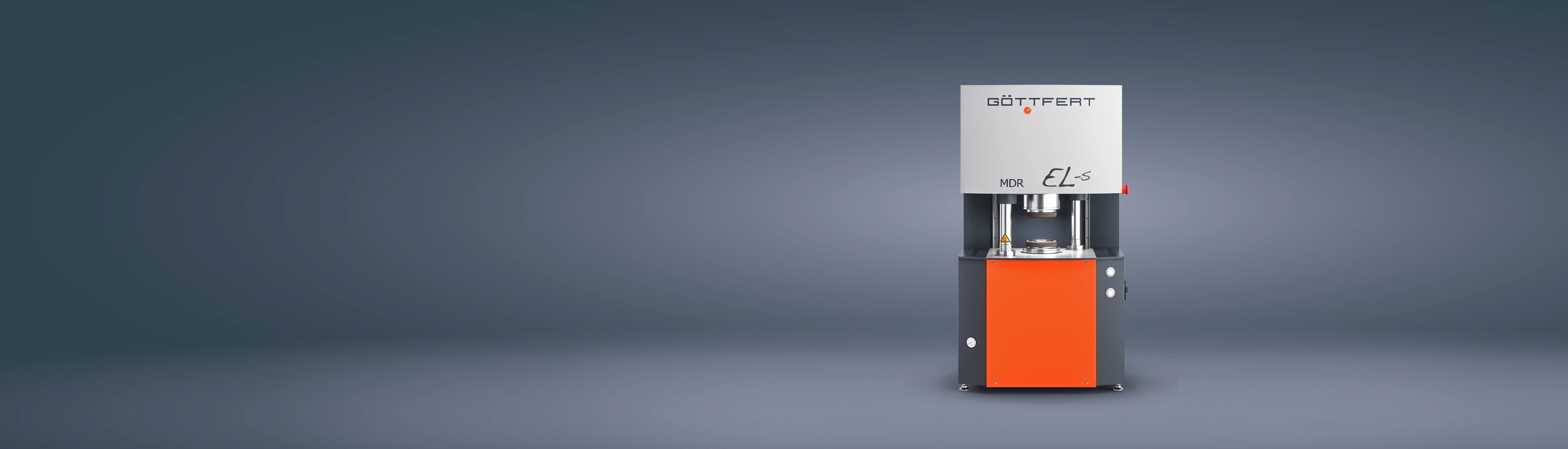

The MDR ELASTOGRAPH-S is a moving die rheometer with variable deformation amplitude. It is used to determine the viscoelastic properties of natural and synthetic rubber compounds in quality control and research.

  • ISO 6502
  • ASTM D5289
  • DIN 53529

The ELASTOGRAPH-S, a rotor-less vulcameter, is used to determine the behavior of viscoelastic material in a plasticized state during vulcanization and after vulcanization. For this purpose, a torsional load is imposed on the sample by the rotational oscillation of the lower test die half. Torque and phase angle are recorded as a function of test time.

The MDR ELASTOGRAPH-S was developed with the experience of 45 years in the field of rubber testing and has proven high accuracy, reliability and repeatable measurement results.

The vulcameter can be equipped with different test chamber designs depending on the standard and material used. Available are quasi, as well as hermetically sealed test chambers in biconical, shore and paste versions. With the optional autoloader, multiple tests can be performed fully automatically without user intervention.

Compared to the MDR ELASTOGRAPH, the MDR ELASTOGRAPH-S has a larger and user-definable amplitude from +/- 0,01° up to +/- 10°.

Technical specifications
  • Table top unit with state-of-the-art control electronics for raw data acquisition, controlling and test data processing
  • Universal handling with one multi-function button
  • Torque acquisition optionally with normal force measurement
  • Measurements with 50 min-1 or 100 min-1 (0.833 Hz / 1.66 Hz)
  • Large and flexible amplitude from +/- 0,01° up to +/- 10°
  • Diverse selection of test chambers
  • Very fast temperature control and homogeneous temperature distribution with optional air-cooling
  • Parameterization and evaluation via PC software
Measurement types
  • Vulcanisation
  • Isothermal & non-isothermal measurement processes

Optional Units
  • Air-cooling
  • Autoloader
  • Normal force measurement
  • Torque calibration unit
  • Volume punch
Applications

Temperature Sweep

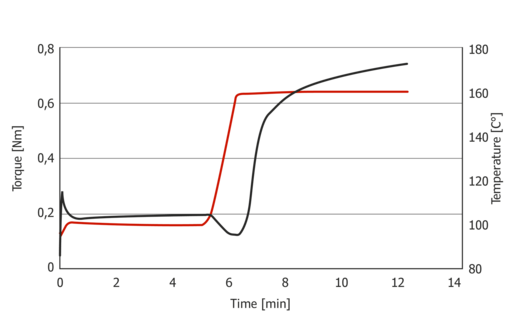

GÖTTFERT MDR Elastographs, enable operator through a temperature sweep with an integrated temperature control program...

Details

Variable time

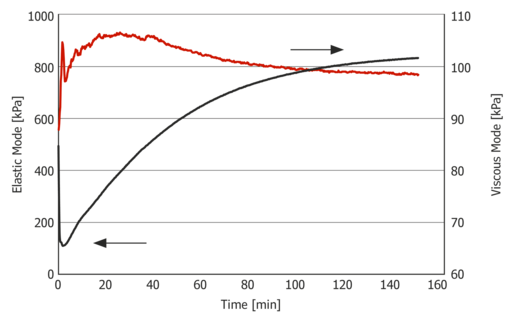

Comparable with the usual vulcameter test here the module and the viscosity via the time are being captured...

Details
