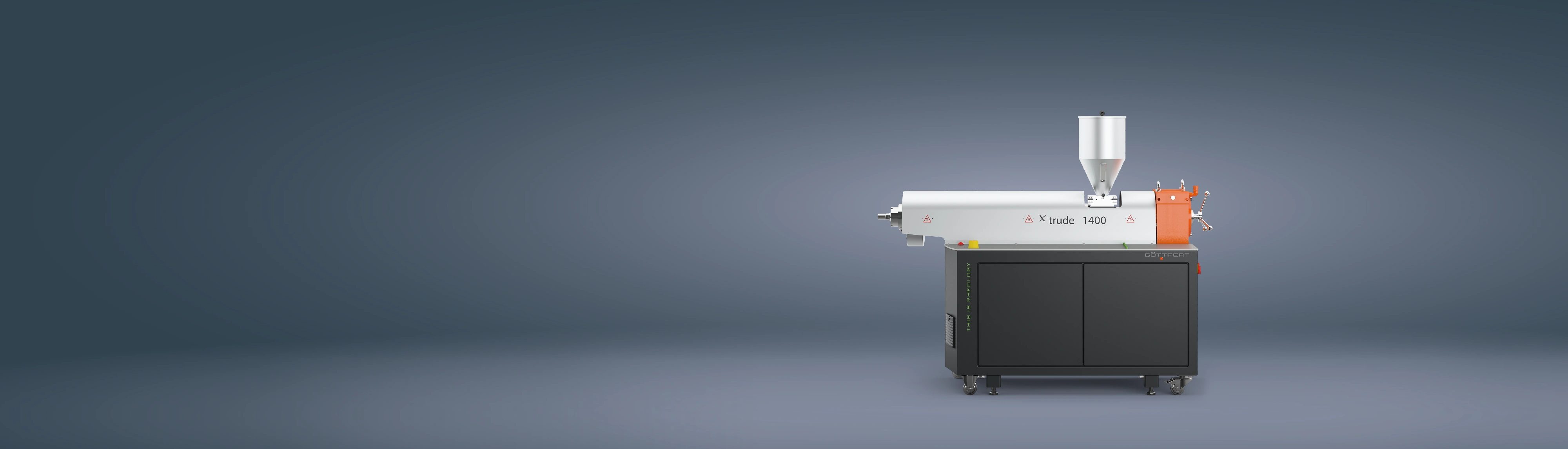

X-trude 1400

GÖTTFERT Laboratory Extruders are not only just Melt Feeder, but also self-sufficient measuring equipment - therefore Extrusiometer!

The GÖTTFERT Extrusiometer of the “X-trude” series are compact extruders and designed for laboratory application to measure and produce polymers. The range of application starts from a simple melt feeder for Online Rheometer (determination of the melt index, the MVR or the viscosity) or for follow-up units like film analyser (ALS), up to fully instrumented laboratory extruder with integrated measurement analysis (ALR) with continuous material feeding system (Online Sampler).

Highlights
  • New invented torque range
  • 1400Nm torque,16.59kW Output power
  • Different layouts of cylinders and spirals
  • Up to 16 heating and 4 cooling zones
  • 0-350° temperature curve with a resolution of 0.1°C and an exactness of calibration <0.4%
  • Specified measuring range of the pressure sensor: 0 - 100, -200, -500, -1000 bar at a deviation from the reference value of +/- 0.5%
  • Control with external PC or integrated touch-panel
  • Visualization with Software „ROSWin“
  • Application specific modifications possible
