Extruder Add-On

Modular platform for the advanced characterization of polymers

Modular and flexible

Expand your extruder

We offer a flexible platform for the characterization of polymers with our extruders. The extruder serves as a base unit to which various additional add-ons can be modularly added.

This allows the extruder to be optimally adapted to the individual requirements of each application. In its full configuration, the processing behavior can be comprehensively characterized.

Success Story: Our testing instruments in use

Roundtable: Know-how directly from our lab

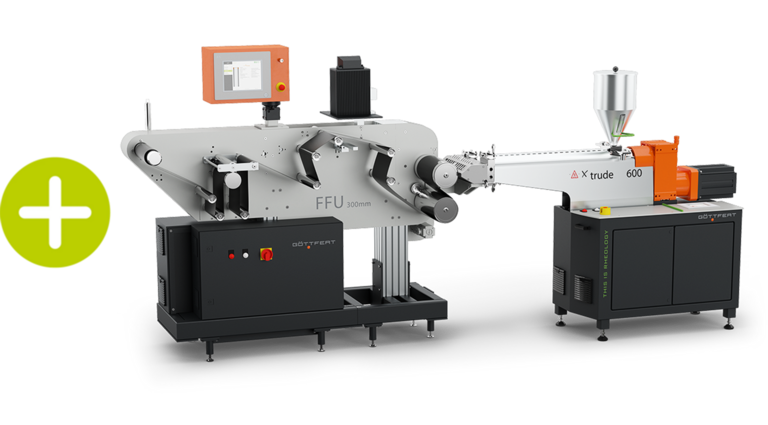

Flat Film Unit

Flat die 70 / 120 / 150 / 220 / 320 / 420 mm
Film width up to 400 mm (greater widths on request)
Take-off speed 0–50 m/min
Take-off roll diameter max. 600 mm
Infinitely adjustable height setting
Controllable shaft for coreless winding

Filter Measuring Head

Reduced downtime through preheating of the subsequent filters
Measurement in accordance with DIN EN 13900-5
Fast filter change without stopping the extruder and melt pump
Analysis of purity and homogeneity
Quantitative determination of the concentration of contaminants and viscosity inhomogeneities affecting quality
Multi-layer, replaceable filter discs
Operation at constant rotational speed (shear rate)
Compact design

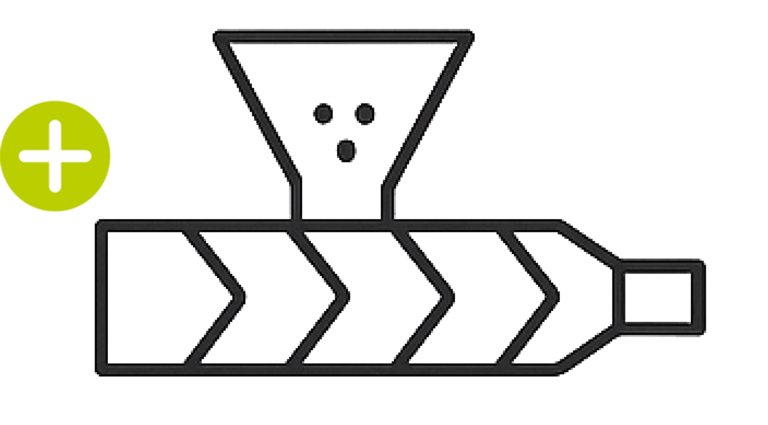

Continuous Output Measurement

The melt strand is guided to the outside through a deflection head or an MBR rheometer measuring head
Below the capillary, the strand enters a collecting container positioned on a balance
The balance continuously determines the weight and transmits it at precise time intervals to the evaluation software
Extension of the operating program for connection of a laboratory balance
Supplied with collecting container and connection cable from the balance to the EXTRUSIOMETER

RHEOTENS

Infinitely variable speed
Free selection between linear and exponential acceleration
Setting, steering of measuring process and test analysis with Windows Program RHEOTENS 97
Different pull-off wheels – to be specified depending on usage
Tandem pull-off wheels
Already existing RHEOTENS machines can be upgraded with new electronic box as well as “RHEOTENS 97”

Die Swell Measurement

Determination of dynamic and static die swell
Analysis of threshold profile (BASELL Method)
Swivel with infinitely variable hight setting
Laser measuring head in 0.1μm or 7μm edition
Optional with automatic melt cutting device
Application: Simulation of Material-Threshold behavior during injection molding

Strand Winder

Winding of the cooled melt strand
Force- and speed-controlled drive
Guidance via cooling bath and deflection roller
Rubber/stainless steel rollers for reliable transfer
Automatic full signal with shutdown

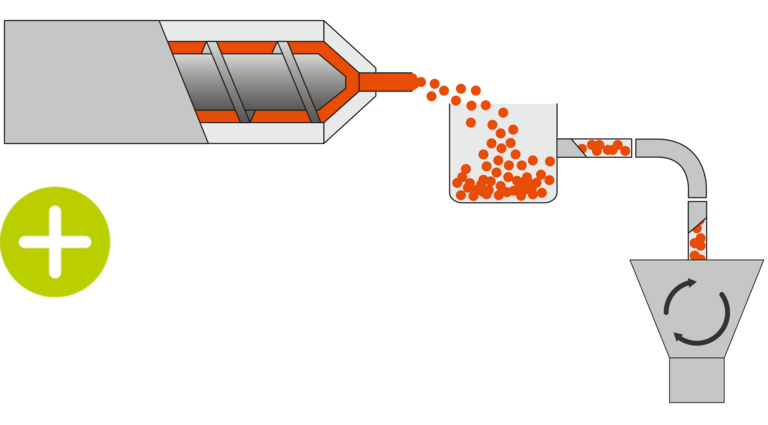

Online-Sampling

System suitable for conveying granulate, grit, and powder
Adjustment of conveying rate depending on the application
Long distances achievable by using signal amplifiers
Conveying medium (carrier substance): air, nitrogen, …
No electrostatic charging of the material
Fast material change by sampler emptying down to the extruder screw
Reliable prevention of material bridging
Reference material feeding
Automatic cleaning functions (selfcleaning, …)
Automatic waste handling
Sampler available in Ex or non-Ex version

Deflection Head

90° melt diverting head with spacer and die nut
Connection at the barrel end, e.g., for continuous melt elongation measurement
Can be equipped with various dies
Bores for a pressure transducer and a melt temperature sensor

Cooling Bath

Water bath for cooling an extruded strand

SHARK SKIN

The Shark Skin measuring head is mounted at the bottom of the test barrel instead of the capillary. With this option it is possible to measure exactly at which critical shear rates surface inhomogeneities occur.

Detection of the Shark Skin effect
Consisting of slit die, three high frequency pressure-sensors (sampling rate up to 20 kHZ), as well as software package
Determination of the frequency spectrum and statistical evaluation of the pressure signal
Optimization in the extrusion, film and coating process
